BayMeds Developer Guide

---

Acknowledgements

• This project is based on the AddressBook-Level3 project created by the SE-EDU initiative.
• Libraries used: JavaFX, Jackson, JUnit5

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

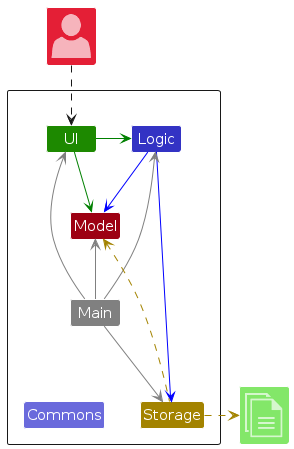

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app's work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

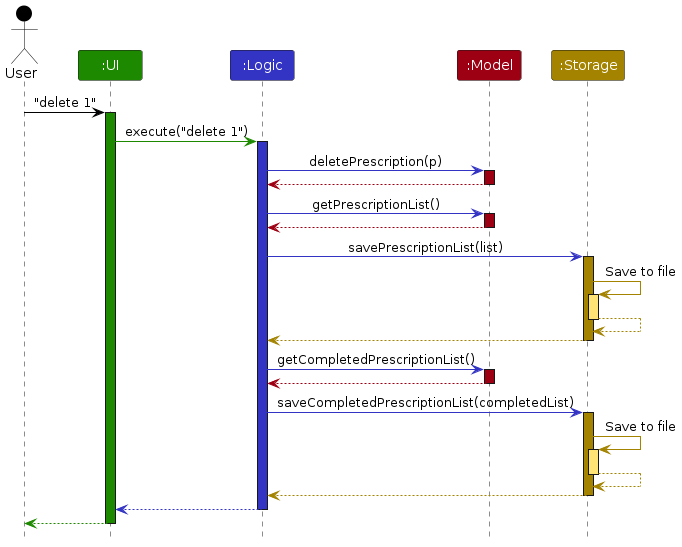

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

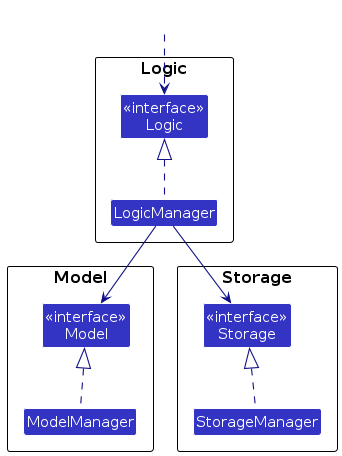

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component's being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

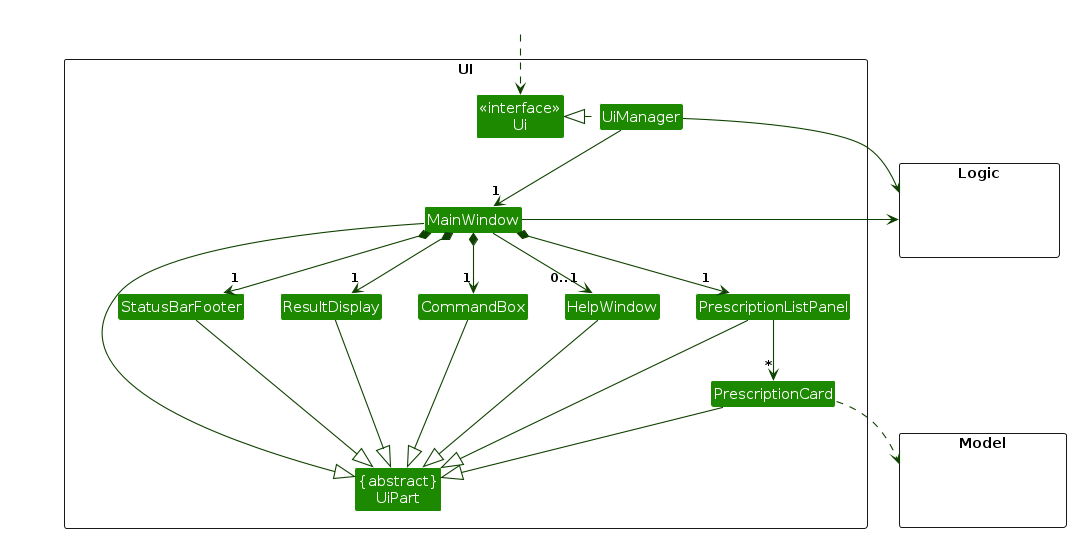

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PrescriptionListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Prescription object residing in the Model.

Logic component

API : Logic.java

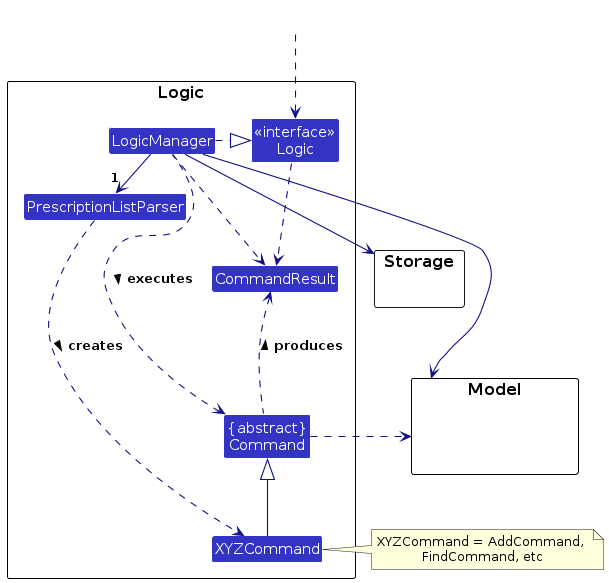

Here's a (partial) class diagram of the Logic component:

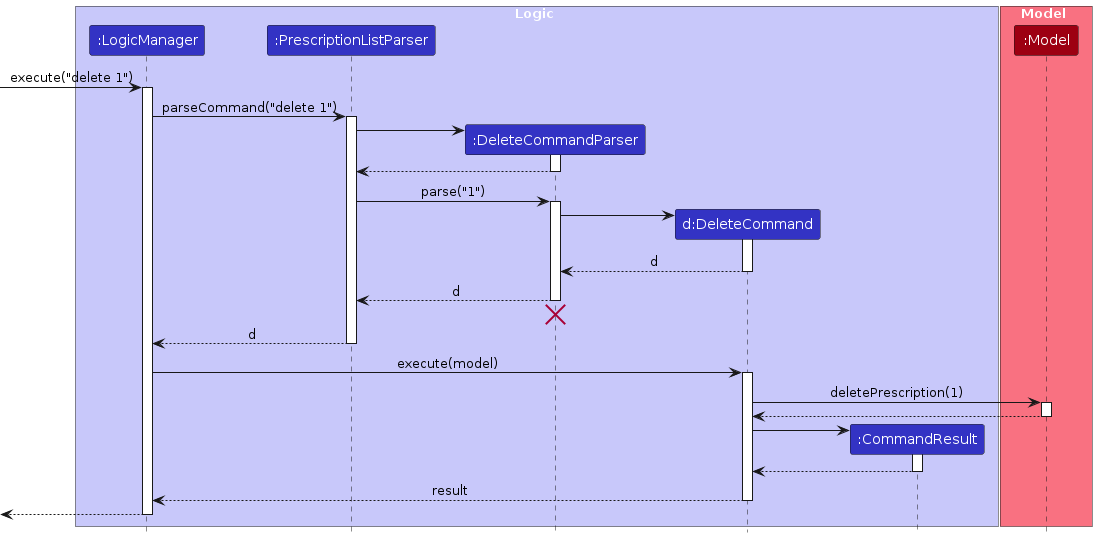

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an PrescriptionListParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a prescription).
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

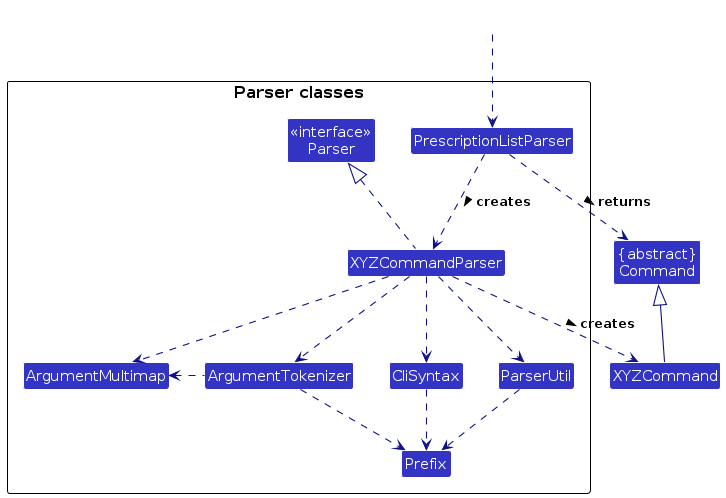

How the parsing works:

• When called upon to parse a user command, the PrescriptionListParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the BayMedsParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, ...) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

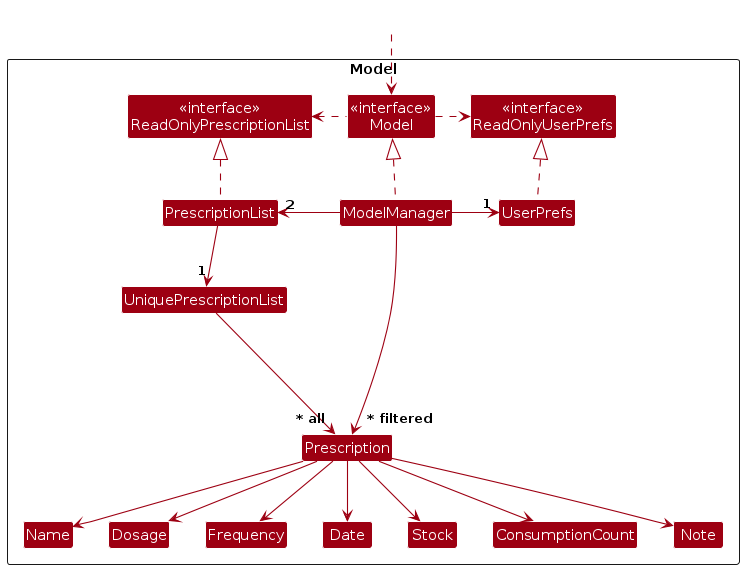

The Model component,

• stores the BayMeds data i.e., all Prescription objects (which are contained in a UniquePrescriptionList object).
• has two separate PrescriptionList objects to keep track of existing and completed prescriptions.
• stores the currently 'selected' Prescription objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Prescription> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

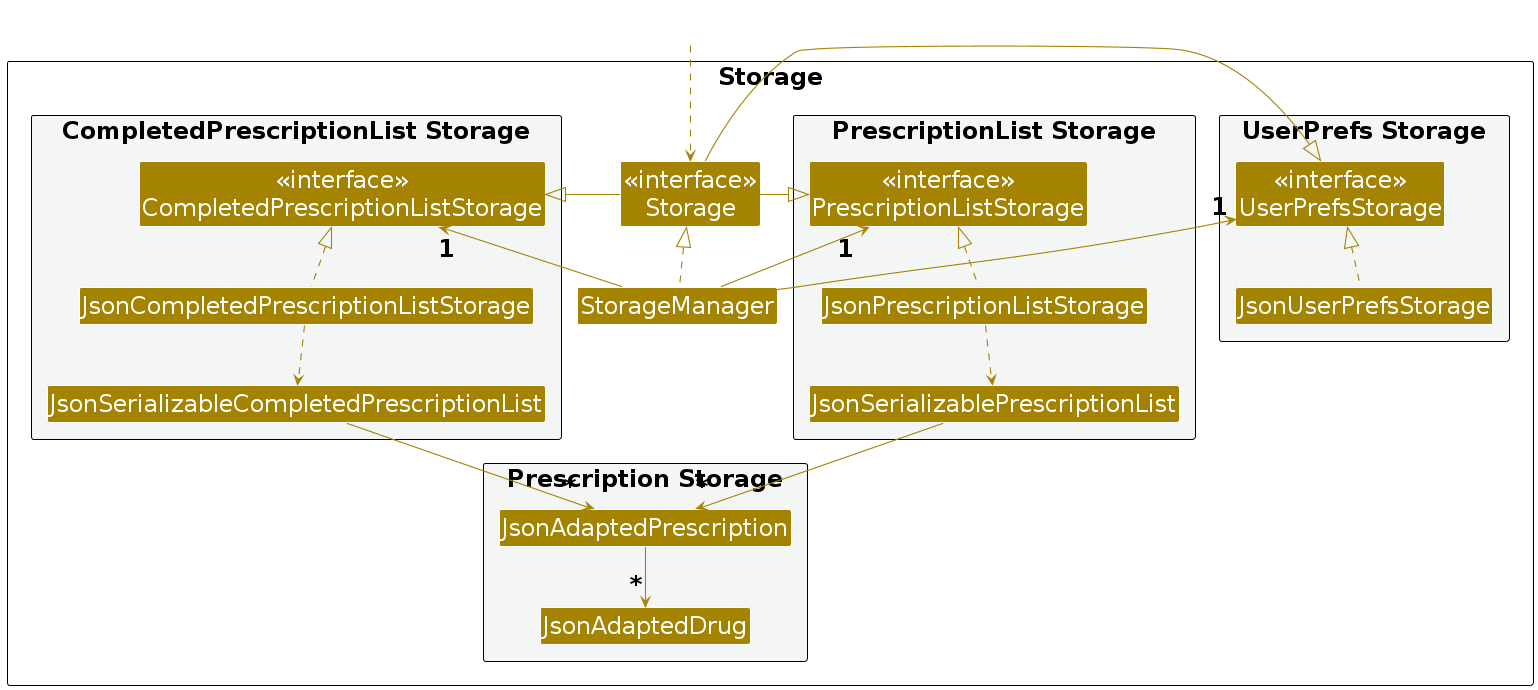

Storage component

API : Storage.java

The Storage component,

• can save both BayMeds data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both Storage and UserPrefsStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component's job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

UI

The UI consists of a MainWindow component that serves as the parent for other JavaFX components as explained here.

Upon initialising BayMeds for the first time, UIManager will call the fillInnerParts method of MainWindow which also executes the scaleScreen method to scale the UI according to the user's screen size.

The screen size is scaled strictly by height based on a 16:9 aspect ratio. The final size will then be saved in preferences.json.

Design considerations:

Aspect: Resizing the UI

• The UI is made to not be resizable. As the window size is scaled according to the user's screen size when they open BayMeds for the first time, there will be no issues with inappropriate sizes for different screen resolutions.
• This ensures that the different UI components remain in full visibility at all times, thus keeping a simple and lightweight UX.
• The UI can still be minimized if need be, but there is no incentive to keep it running in the background. Users should ideally just need to open BayMeds, enter a few commands and exit.

Add feature

The add prescription feature is facilitated by the AddCommandParser.

Given below is an example usage scenario and how the add prescription mechanism behaves at each step.

Step 1. The user types the command add mn/Propranolol. Upon pressing enter, the Ui triggers the execute method in Logic, passing the input text to the PrescriptionListparser in Logic. The PrescriptionListParser then checks the command type to determine which command parser to call.

Step 2. Upon checking that it is an add command, the AddCommandParser will be created to parse the input text. It creates an argMultiMap, which contains the mappings of each recognised prefix in the input text, and its associated value.

Note: If there are absent prefixes that are compulsory, it will throw a ParseException error.

Step 3. The AddCommandParser will then create a new Prescription object using the argMultiMap with the prefix fields and values present. Optional fields which were not provided will be initialised as null. The AddCommandParser subsequently returns a new AddCommand object with the prescription to be added stored as an attribute.

Note: For the prescription's startDate, it will be initialised to LocalDate.now() if no start date is given, using the date of creation as the default startDate value.

Step 4: Logic then calls AddCommand's execute. This will call Model's addPrescription method, passing the prescription to be added. The Model will interact with the in-memory PrescriptionList, adding the prescription into it. Finally, the Model sets the filteredPrescriptions to show all prescriptions in the existing PrescriptionList.

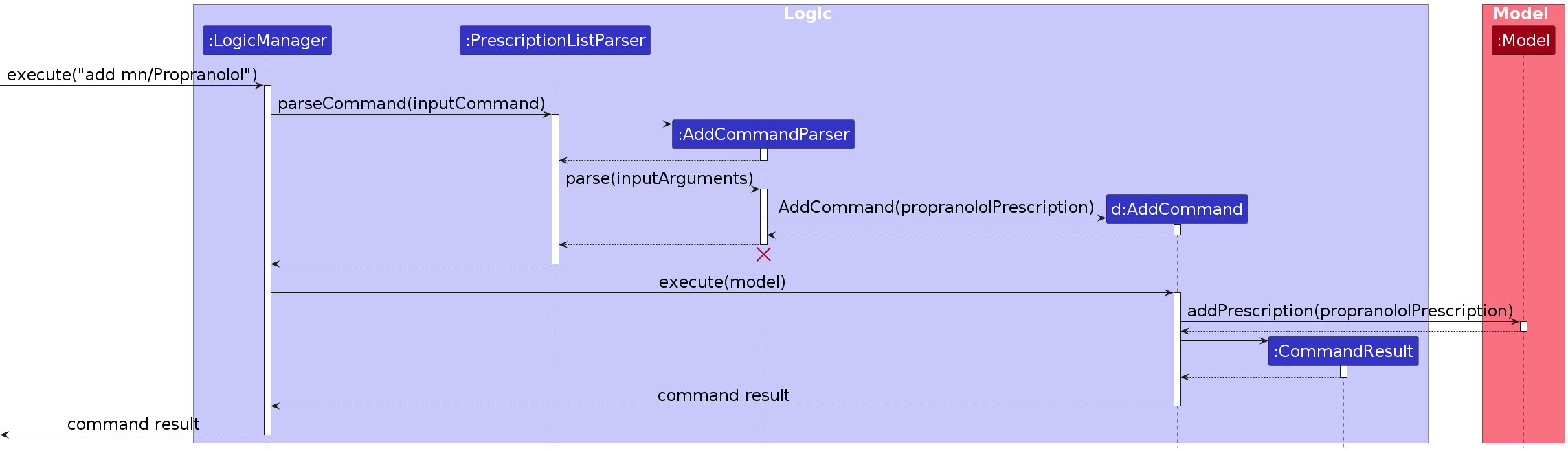

The following sequence diagram shows how the add operation works.

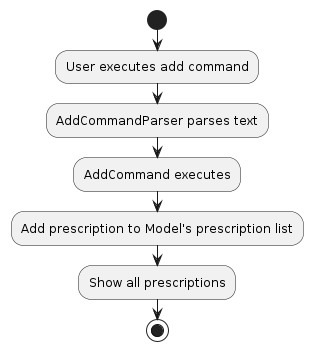

The following activity diagram summarizes what happens when the user executes an add command.

Design considerations:

Prescriptions may have an uneven consumption interval. For example, some prescriptions only needs to be consumed every Wednesday and Sunday. In such scenarios, users will need to input this prescription as 2 separate inputs with the same prescription name.

To cater for this, we are using every prescription's name and startDate to identify each prescription. Every Prescription must therefore have both these fields. As such, if no start date was provided, it will be initialised to a default value.

To cater to fast typists, we have made most of the input fields optional, so that they only need to put in minimal data in order to successfully add a prescription. The only compulsory field is the medication name of the prescription.

Edit feature

The Edit Command is a fundamental feature of the BayMeds application, allowing users to modify the details of a prescription. It leverages the EditPrescriptionDescriptor and follows a specific edit mechanism.

EditPrescriptionDescriptor

The EditPrescriptionDescriptor is a crucial component for processing edit commands. It serves as a container for holding the new values that the user wishes to apply during the edit operation. This descriptor is essential for maintaining consistency and ensuring that only valid changes are made to a prescription.

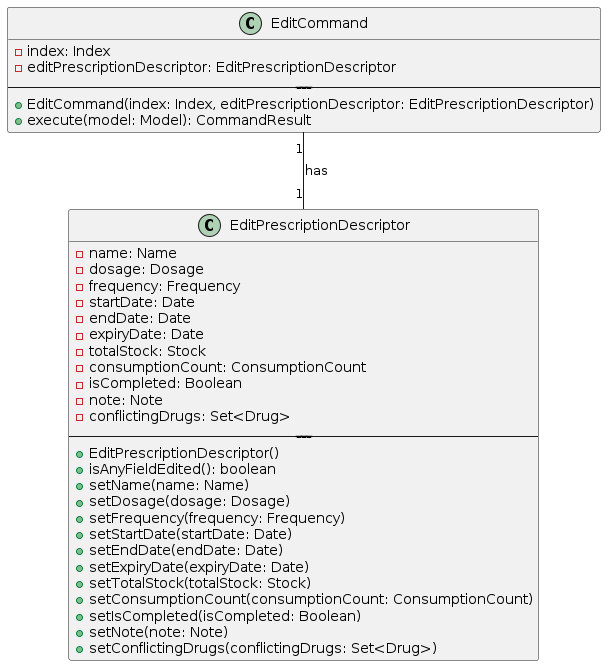

The following class diagram shows the relationship between the EditPrescriptionDescriptor and the EditCommand class.

Shown is an example of the usage of the edit command, which shows the EditPrescriptionDescriptor in action.

Step 1. User initiates an edit command, e.g., edit 1 mn/UpdatedMedicationName d/3.

Step 2. The EditCommandParser processes the user's input, extracting the prescription index and the edits to be made.

Step 3. The EditCommandParser then creates an instance of the EditPrescriptionDescriptor, populating it with the provided changes. In the example above, the medication name (mn) is updated to "UpdatedMedicationName," and the dosage (d) is updated to "3".

Step 4. The EditCommandParser then creates an instance of the EditCommand class, passing in the prescription index and the EditPrescriptionDescriptor instance.

Step 5. The EditCommand class then calls the execute method, which carries out checks to ensure that the prescription index is valid. If the prescription index is invalid, an error message is returned to the user.

Step 6. The 'EditCommand' class uses the EditPrescriptionDescriptor instance and the Prescription to be edited to create a new Prescription with the edited fields.

Step 7. The edited prescription is then checked to ensure that it is valid. If the edited prescription is invalid, an error message is returned to the user.

Step 8. The EditCommand class then calls the editPrescription method in the Model class, passing in the prescription index and the edited prescription.

Take / untake feature

Note: The untake feature is similar to the take feature but reverses the incrementing and decrementing of consumption count and stock respectively, given below is the guide for the take feature.

The take prescription feature is facilitated by the TakeCommandParser.

Given below is an example usage scenario and how the take prescription mechanism behaves at each step.

Step 1. The user types the command take 1 d/4. Upon pressing enter, the Ui triggers the execute method in Logic, passing the input text to the PrescriptionListparser in Logic. The PrescriptionListParser then checks the command type to determine which command parser to call.

Step 2. Upon checking that it is a take command, the TakeCommandParser will be created to parse the input text. It creates an argMultiMap, which contains the mappings of each recognised prefix in the input text, and its associated value.

Note: If no dosage is specified, the default dosage to take will be 1.

Step 3. The TakeCommandParser subsequently returns a new TakeCommand object with the index of the prescription to take and the dosage to take.

Step 4: Logic then calls TakeCommand's execute. This will call Model's getFilteredPrescriptionList method and retrieve the prescription based on the index from the in-memory PrescriptionList, necessary checks are done to check if the index is valid and there is enough stock. TakeCommand's executeTake is then called, incrementing the consumption count and decrementing the stock of the prescription. Finally, the completed status is set based on the consumption count and dosage of the prescription and the Model sets the filteredPrescriptions to show the prescription that was just taken from.

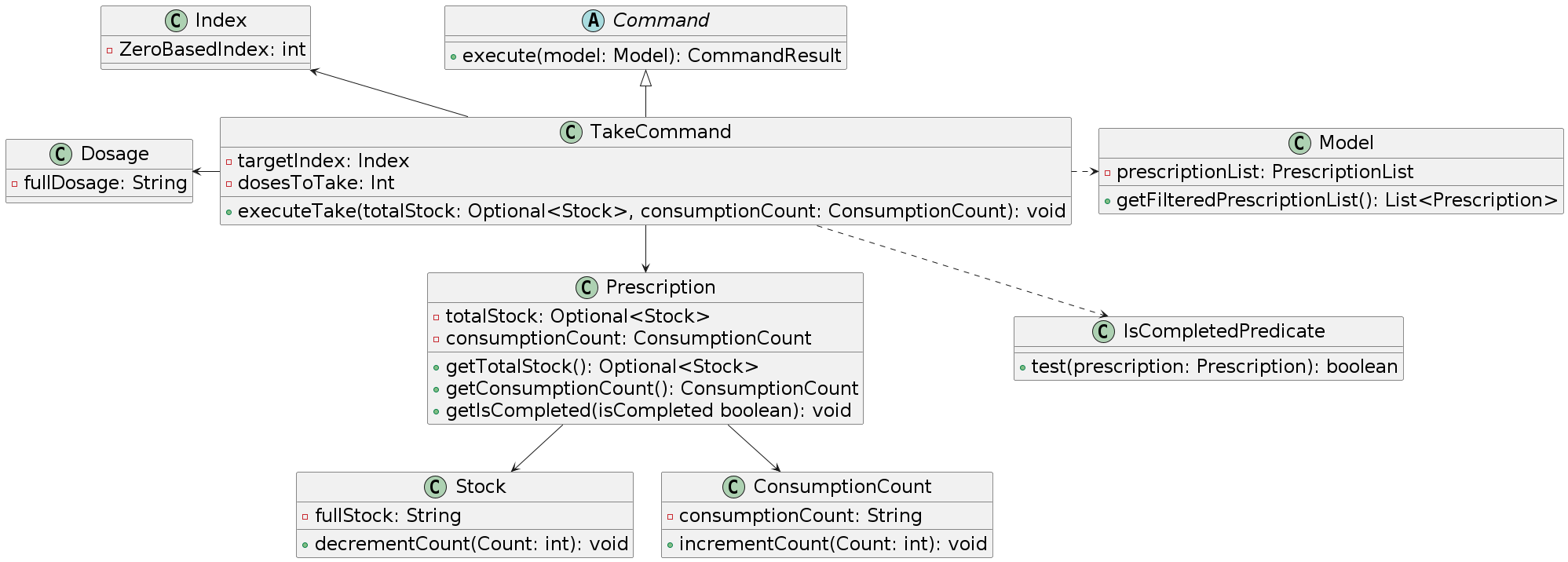

The following class diagram shows the classes associated with executing a take command.

Design considerations:

Prescriptions may have duplicate names but different start dates.

To cater for this, the take command uses the index instead of the name of the medication when executing.

List today feature

The list today feature is facilitated by the ListTodayCommandParser.

Given below is an example usage scenario and how the list today mechanism behaves at each step.

Step 1. Ui and Logic works similarly to when adding prescriptions. However, a ListTodayCommandParser is created instead.

Note: If there are extra fields in the input, it will throw a ParseException error.

Step 2. The ListTodayCommandParser subsequently returns a new ListTodayCommand object.

Step 3: Logic then calls ListTodayCommand's execute. This will create a new IsTodayPredicate object which is passed into the method call for Model's updateFilteredPrescriptionList.

Step 4: The Model will then update the in-memory FilteredList<Prescription> with the new predicate. Finally, the Model sets the filteredPrescriptions to show only today's prescription in the existing PrescriptionList.

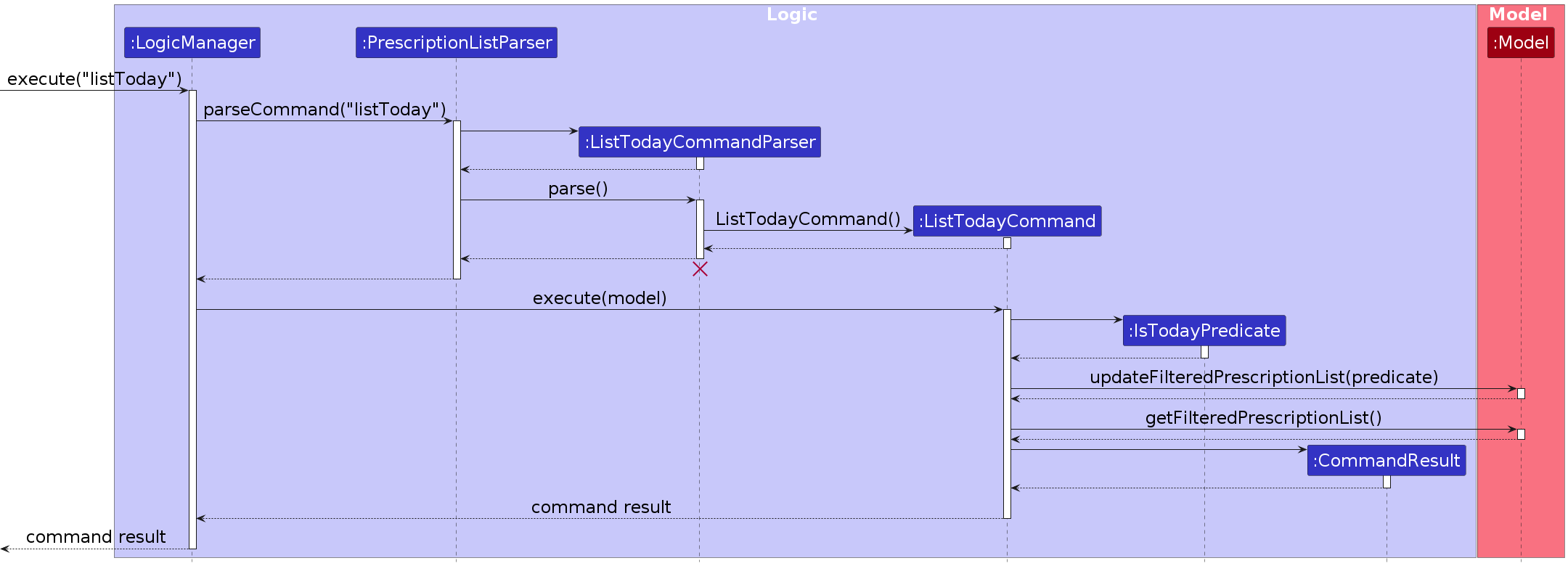

The following sequence diagram shows how the listToday operation works.

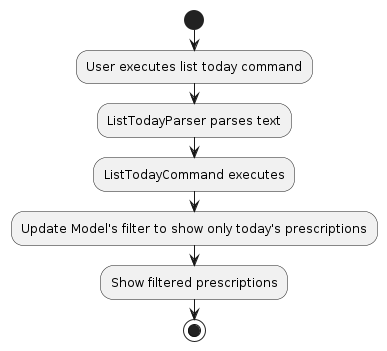

The following activity diagram summarizes what happens when the user executes an listToday command.

Design considerations:

As there are no input parameters for ListTodayCommand, it is possible to implement this without ListTodayCommandParser. However, ListTodayCommandParser was created to utilise methods in argMultiMap to check for extra fields.

The result of IsTodayPredicate depends on the prescription's startDate. It is intentional that monthly frequencies are based on increments of 30 days rather than the absolute day of each month.

List completed feature

To allow BayMeds to store a separate list of completed prescriptions to facilitate the listCompleted feature, we have expanded on the existing model and storage components.

• Apart from prescriptionList, Model also has an in-memory view of a completedPrescriptionList. It has its own set of CRUD features for handling completedPrescriptionList, and it handles completedPrescriptionList similar to how it handles prescriptionList.

• Storage also contains the implementation of the completedPrescriptionList storage. The completed prescription list is stored in the file path data/completedPrescriptionList.json, adjacent to the storage for prescriptionList.

Upon start up of BayMeds or after every command, BayMeds will check through the list of current prescriptions against a new LocalDate.now() to see if any of the end dates are beyond it (i.e. in the past). If it is, it will transfer the prescription over from one list to the other by deleting this prescription from the existing current prescriptionList, and adding it to the the completedPrescriptionList.

Design considerations:

We intentionally chose to store completed prescriptions in its own completedPrescriptionList.json file, away from the original prescriptionList.json. By separating them into two different storages, we help to enhance security of the data as if users were to accidentally manually delete one of the files, the other would still be in tact, and the user would not lose their data in its entirety.

Check prescription interaction feature

The check prescription interaction feature is facilitated by the AddCommandParser.

Given below is an example usage scenario and how the check prescription interaction mechanism behaves at each step.

Step 1. Ui and Logic works similarly to when adding prescriptions. It creates an argMultiMap, which contains the mappings of each recognised prefix in the input text, and its associated value.

Note: If there are extra fields in the input, it will throw a ParseException error.

Step 2. The AddCommandParser subsequently returns a new AddCommand object.

Step 3: Logic then calls AddCommand's execute. The ModelManager will check through the Prescriptions in the PrescriptionList to ensure that there are no clashing Drugs.

Note: If the prescription to be added contains a drug that will clash with an existing prescription, an warning message is returned to the user. The prescription will still be added.

Step 4: The Model will then update the in-memory FilteredList<Prescription> with the new drugs.

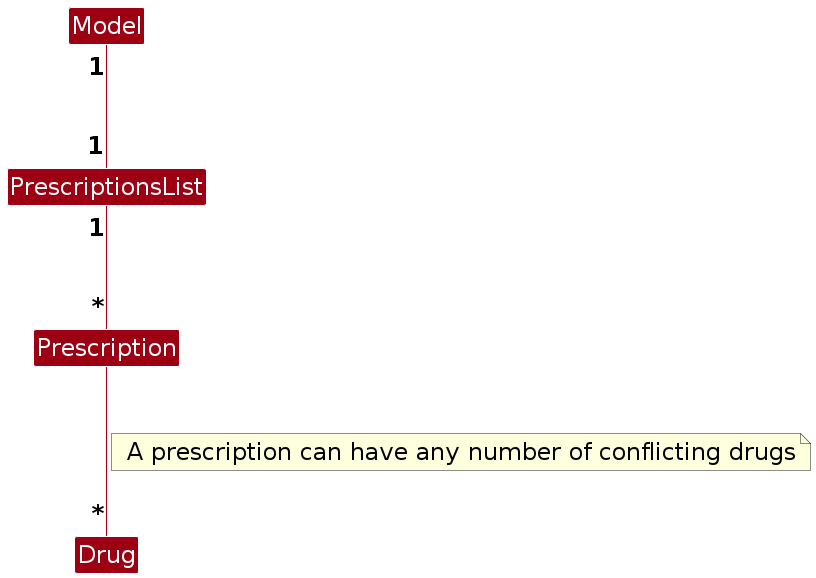

The following object oriented domain model shows the class structure of the problem domain.

Consumption count reset feature

At the beginning of each day, BayMeds is able to automatically reset the consumption count. This is so that you are able to track the consumption of your prescriptions each day, and that the consumption count will not be accumulated over multiple days.

The most recent date will be stored in the preferences.json file. Upon start up of BayMeds or after every command, BayMeds will create a new LocalDate.now() and compare it with the stored date. If it is different, implying that it is a new day, the consumption count will be reset and the stored date will be replaced with the new date.

Design considerations:

We considered implementing an alternative version, where users can call a reset command, which will reset the consumption counts of all the prescriptions. However, this would result in a very tedious task for the user of having to manually reset your consumption counts daily, which alot of users may forget. Thus, we went ahead with the above implementation, to ease the process of tracking prescription consumption.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• has a need to manage a significant number of prescriptions, is a caregiver or a patient with multiple prescriptions
• prefers a quick way of tracking medication needs, dosage and related health information
• prefers desktop apps over other types
• can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition:

• manage prescriptions faster than a typical mouse/GUI driven app
• track dosage schedule
• store important details and instructions about prescriptions
• log medical history and past consumption
• warn about conflicting drugs in current prescriptions

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Use cases

(For all use cases below, the System is the BayMeds and the Actor is the user, unless specified otherwise)

Use case: Edit a prescription

MSS

1. User requests to list prescriptions.

2. BayMeds shows a list of prescriptions as requested.

3. User requests to edit a specific prescription in the list with the edited details.

4. BayMeds edit the prescription.

   Use case ends.

Extensions

• 1a. The given command is invalid.

  • 1a1. BayMeds shows an error message.

    Use case resumes at step 1.

• 2a. The list is empty.

  Use case ends.

• 3a. The given prescription is not in the list.

  • 3a1. BayMeds shows an error message.

    Use case resumes at step 2.

• 3b. User did not give any edited details.

  • 3b1. BayMeds shows an error message.

    Use case resumes at step 2.

Use case: Delete a prescription

MSS

1. User requests to list prescriptions.

2. BayMeds shows a list of prescriptions as requested.

3. User requests to delete a specific prescription in the list.

4. BayMeds deletes the prescription.

   Use case ends.

Extensions

• 1a. The given command is invalid.

  • 1a1. BayMeds shows an error message.

    Use case resumes at step 1.

• 2a. The list is empty.

  Use case ends.

• 3a. The given prescription is not in the list.

  • 3a1. BayMeds shows an error message.

    Use case resumes at step 2.

Use case: List all prescriptions

MSS

1. User requests to list all prescriptions.

2. BayMeds shows a list of prescriptions as requested.

   Use case ends.

Extensions

• 1a. The given command is invalid.

  • 1a1. BayMeds shows an error message.

    Use case resumes at step 1.

• 2a. The list is empty.

  Use case ends.

Use case: List medications to be consumed today

MSS

1. User requests to list all remaining medications to be consumed today.

2. BayMeds shows a list of medications to be consumed today.

   Use case ends.

Extensions

• 1a. The given command is invalid.

  • 1a1. BayMeds shows an error message.

    Use case resumes at step 1.

• 2a. The list is empty.

  Use case ends.

Use case: Marking a particular prescription as taken

MSS

1. User requests to list prescriptions.

2. BayMeds shows a list of prescriptions as requested.

3. User indicates the number of doses consumed to mark the specified prescription.

4. BayMeds marks the specified prescription with the specified number of doses consumed.

5. BayMeds reduces the total number of pills of that prescription.

   Use case ends.

Extensions

• 1a. The given command is invalid.

  • 1a1. BayMeds shows an error message.

    Use case resumes at step 1.

• 2a. The list is empty.

  Use case ends.

• 3a. User did not indicate any dose quantity.

  • 3a1. The default dosage consumed will be taken as 1.
  • 3a2. Use case resumes at step 4.

• 3b. User indicates a dose quantity that exceeds the total number of available pills in stock.

  • 3b1. BayMeds shows an error message.

    Use case resumes at step 2.

Use case: List conflicting drugs of a prescription

MSS

1. User requests to list prescriptions.

2. BayMeds shows a list of prescriptions as requested.

3. User requests to see conflicting drugs of a specified prescription.

4. BayMeds shows the conflicting drugs of that particular prescription.

   Use case ends.

Extensions

• 1a. The given command is invalid.

  • 1a1. BayMeds shows an error message.

    Use case resumes at step 1.

• 2a. The list is empty.

  Use case ends.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 1000 prescriptions without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. A user should be able to export and use the stored prescriptions data elsewehere.
5. Should be able to display the application correctly regardless of the screen size.
6. Should have a user friendly and intuitive interface.

Glossary

• Mainstream OS: Windows, Linux, Unix, OS-X
• Medication: A drug identified by a name.
• Prescription: Uniquely identified by a medication and a start date.
• Conflicting drugs: Drugs that should not be taken together.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample prescriptions. The window size may not be optimum.

2. Saving window preferences

   1. Window size is automatically scaled strictly to a 16:9 ratio and saved upon start up. It will not be resizable.

   2. If you are using a screen of a different size, delete the preferences.json file and run BayMeds again.

Deleting a medication

1. Deleting a medication while all medications are being shown

   1. Prerequisites: List all medications using the list command. Multiple medications in the list.

   2. Test case: delete 1
      Expected: Aspirin is deleted from the list. Details of the deleted medication shown in the Result Display.

   3. Test case: delete 9
      Expected: No medication is deleted. Error details shown in the Result Display. List Display remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ...
      Expected: Similar to previous.

Saving data

1. Dealing with missing/corrupted data files

   1. To simimulate a corrupted file, feel free to edit the data inside data/prescriptionList.json and data/CompletedPrescriptionList.json. You may change the format entirely, or input an invalid value for one of the fields.

   2. By design, if there are issues with the stored data files, BayMeds will begin with an empty prescription list.

---

Appendix: Planned Enhancements

Given below are known issues and planned enhancements in the future.

1. When adding conflicting drugs, if you are handling complex drugs, drugs with names longer than a word (such as "Ascorbic acid") cannot be added as drug names are space separated. We will implement a fix for this in the future.
2. When adding conflicting drugs, if you leave the /cfdg field empty or without alphanumeric characters, the error message will be the same as if you left the /mn parameter empty. We will implement a fix for this in the future.
3. When adding conflicting drugs, if you add drugs in a different case to the /cfdg field (e.g. ASPIRIN, aspirin, AspIrIN), BayMeds will add each of them as a new conflicting drug. BayMeds will not show a warning if the conflicting drug to be added does not exactly match the case of the existing prescriptions. We will implement a fix for this in the future.
4. When taking prescriptions, if you overdose and take more than the dosage stored in BayMeds, there will not be an error message to warn you. We will implement a fix for this in the future.
5. When adding prescriptions, if you name your prescriptions with numbers "1", "234" or "4 5 6", BayMeds will add this prescription as per normal. As these names do not properly identify the exact prescription stored in BayMeds, we will implement a fix for this in the future.
6. When taking prescriptions, we will implement a feature that automatically reminds you when it is time to eat your medication.



---

Appendix: Effort

Given below documents the tremendous efforts put in by each and every member of the BayMeds team.

We implemented a combined total of 14 command features in BayMeds, to ensure that users have a comprehensive way to interact with their prescription lists. Apart from the basic functionalities of adding, deleting, editing and listing prescriptions, we have also expanded the product with several features. Users can find prescriptions easily either by keyword, or those that they have to consume today. Users are also able to view a list of completed prescriptions. We have also implemented the underlying logic infrastructure to faciliate the tracking of conflicting drugs. We have also added filtering functionalities that filter prescriptions that are running low in stock or about to expire.

Apart from command related features, we have also implemented various implicit features, such as the automatic resetting of the consumption count. While we could have easily implemented an alternative version where users can just use the command reset, we decided to go above and beyond and make it much more convenient for users to track their prescriptions. By storing the relevant date information in the preferences.json, we enhanced the infrastructure to cater to the automatic date checking feature that occurs upon start up and after every command.

Another implicit feature is the conversion of every field into an optional field, with the exception of the name. This is so that fast typists, or anyone who would like a convenient way to type can very easily manage their prescriptions with just their medication name. This means that even if they are uncertain o various information, such as the end date of the prescription, or how many pulls they have left in total, they are still able to input the prescription and continue tracking it with minimal details. This also caters to people with prescriptions that are conusmed "as and when required", as it provides flexibility with the usage of Optionals.

We also expanded on the existing storage and model infrastructure to allow for the managing, interacting and tracking of the list of completed prescriptions. While we could have simply combined the completed prescription list into the same json as prescriptionList, we decided to put in the extra effort to separate them out, as mentioned in the design considerations section of the list completed feature. This involved adding new methods in both Model and Storage to interact with this completed prescriptions list.

We also went ahead to revamp the UI of BayMeds. In our attempt to improve the aesthetics and enhance the user interactions and user experience, we created an entirely new UI. Apart from making the commandResult box more readable, we also included fields and their identifiers in the prescriptionCard, organised in a neat format. Using our knowledge of the importance of colours in visual communication, we added a functionality to allow the UI to switch colours to indicate the consumption status of the prescription, using a more striking colour (red) to indicate that the prescription has yet to be consumed.

In line with efforts to enhance the aesthetics of the UI, we also proceeded to enhance the aesthetics of documentation. We adopted a consistent and aesthetic styling through the use of colours and icons, as well as formatting to improve the documentation from the original state to the new and improved BayMeds state.
